ASME SB111 UNS C71500 O61 CuNi 70/30 2.0882 Copper Nickel Alloy Seamless Tube

Brand Name : YUHONG

Model Number : ASME SB111 UNS C71500, CuNi 70/30, 2.0882

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 500 KGS

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : According To Customers' Request

Delivery Time : 5 - 90 Work Days

Packaging Details : Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap

Standard : ASTM B111, ASME SB111, BS EN 1057

Material Grade : UNS C71500, CuNi 70/30, 2.0882, BFe30-1-1,CuNi30Mn1Fe

Type : Seamless, Welded

Temper : O61, HR50

Outside diameter : 2mm~914mm

Wall thickness : 0.7-10mm

Length : 6m,or as required

Alloy or not : Is Alloy

Shape : Round

Applications : Construction,Gas and Oil Plants,Air,Steam,Petroleum Gas Water

Contact Now

ASME SB111 UNS C71500 O61, CuNi 70/30, 2.0882 Copper Nickel Alloy Seamless Tube

ASME SB111 UNS C71500(CuNi 70/30, 2.0882, BFe30-1-1) Copper Nickel Alloy Tube has been added iron and manganese for good corrosion and biofouling resistance. The higher nickel content than copper-nickel 90/10 has enhanced mechanical properties and still maintains excellent corrosion resistance. CuNi 70/30 Copper Nickel Alloy Seamless Tubes are widely used in applications, like heat exchangers, oil and gas plant, chemical industry, petrochemical industry, ship building, marine systems.

Specification:

Specification ASTM B111, ASME SB111
Standard GB, DTD, ASME, AISI, ASTM, TOCT, JIS, NF, SAE, DIN, AMS, DS, EN
OD Size 3.35 mm To 101.6 mm
Bwg & Swg 10Swg, 12Swg, 14Swg, 16Swg, 18Swg, 20Swg, 22Swg, 25Swg.
Length 6M Or Standard & Cut length , Single Random, Double Random Pipe
Finish AP (Annealed & Pickled), BA (Bright & Annealed), 2B, Polished, etc
End Plain End, Beveled End, Treaded ends
Form Round, Straight, “U” Shape
Type Seamless, Welded

ASME SB111 UNS C71500 O61 CuNi 70/30 2.0882 Copper Nickel Alloy Seamless Tube

Chemical Composition:

Grade Cu Ni Fe Mn Pb Zn
C70400 Rem 4.8-6.2 1.3-1.7 0.3-0.8 0.05 max 1.0 max
C70600 Rem 9.0-11.0 1.0-1.8 1.0 max 0.05 max 1.0 max
C71500 Rem 29.0-33.0 0.4-1.0 1.0 max 0.05 max 1.0 max
C71640 Rem 29.0-32.0 1.7-2.3 1.5-2.5 0.05 max 1.0 max

Mechanical Properties:

Grade Temper

Tensile Strength

Mpa

Yeild Strength

Mpa

Elongation

%

Expansion

Requirement

%
Min Min Min Min
C70400 061 260 85 - 30
H55 275 205 - 20
C70600 061 275 105 - 30
H55 310 240 - 20
C71500 061 360 125 - 30
HR50A 495 345 12 20
HR50B 495 345 15 20
C71640 061 435 170 - 30
HR50 560 400 - 20

Applications:

Power Stations

Seawater Desalination

Petrochemical Plants

Shipbuilding

Electrical Appliances

Instrumentation

Medical Equipment

Desalination Plant

Sea Water Pipework

ASME SB111 UNS C71500 O61 CuNi 70/30 2.0882 Copper Nickel Alloy Seamless Tube


Product Tags:

2.0882 Copper Nickel Alloy Seamless Tube



Seamless Tube ASME SB111



Copper Nickel Alloy Seamless Round Tube


China ASME SB111 UNS C71500 O61 CuNi 70/30 2.0882 Copper Nickel Alloy Seamless Tube wholesale

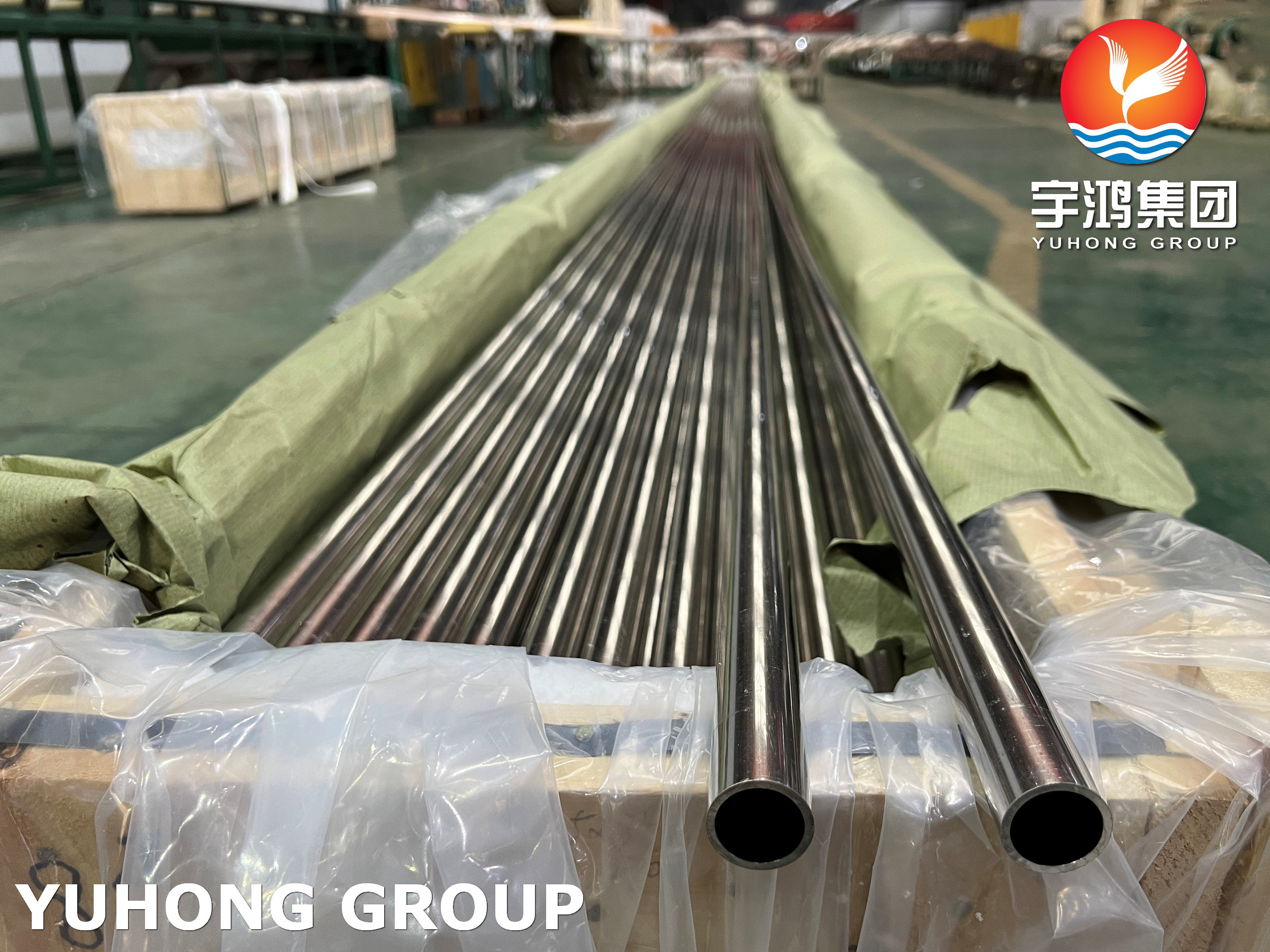

ASME SB111 UNS C71500 O61 CuNi 70/30 2.0882 Copper Nickel Alloy Seamless Tube Images
